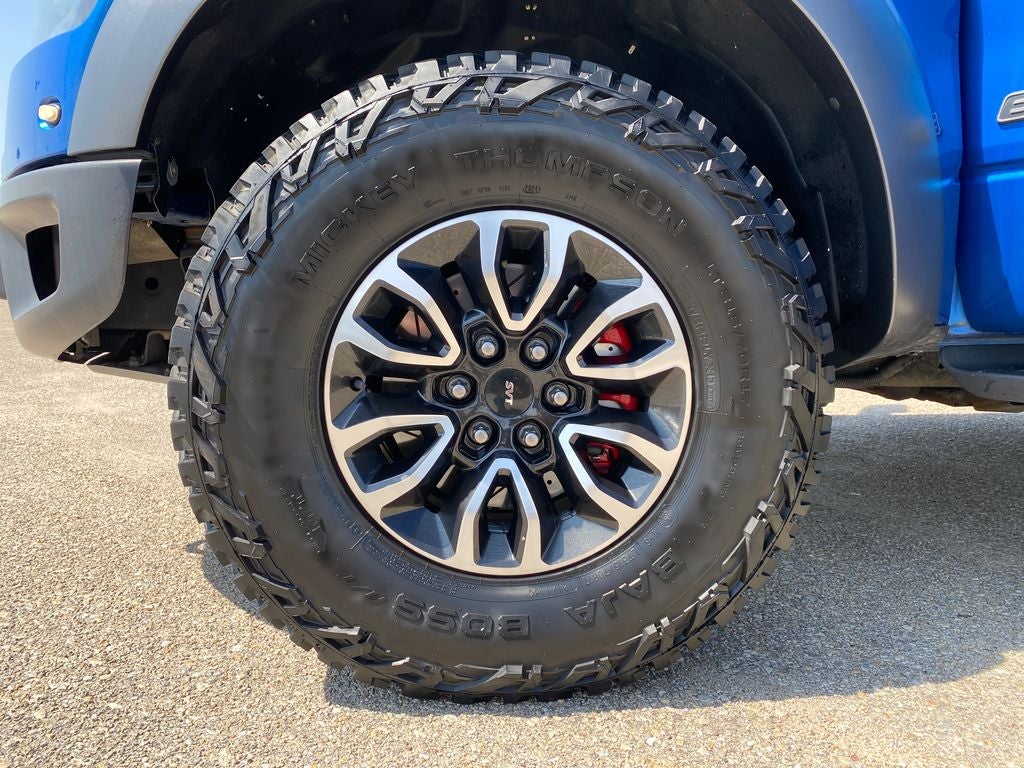

• LT315/70R17 all-terrain BSW tires
• 17" cast aluminum wheels w/painted & machined finish
• Full size spare tire
• Under frame winch-type spare tire carrier w/safety catch & lock

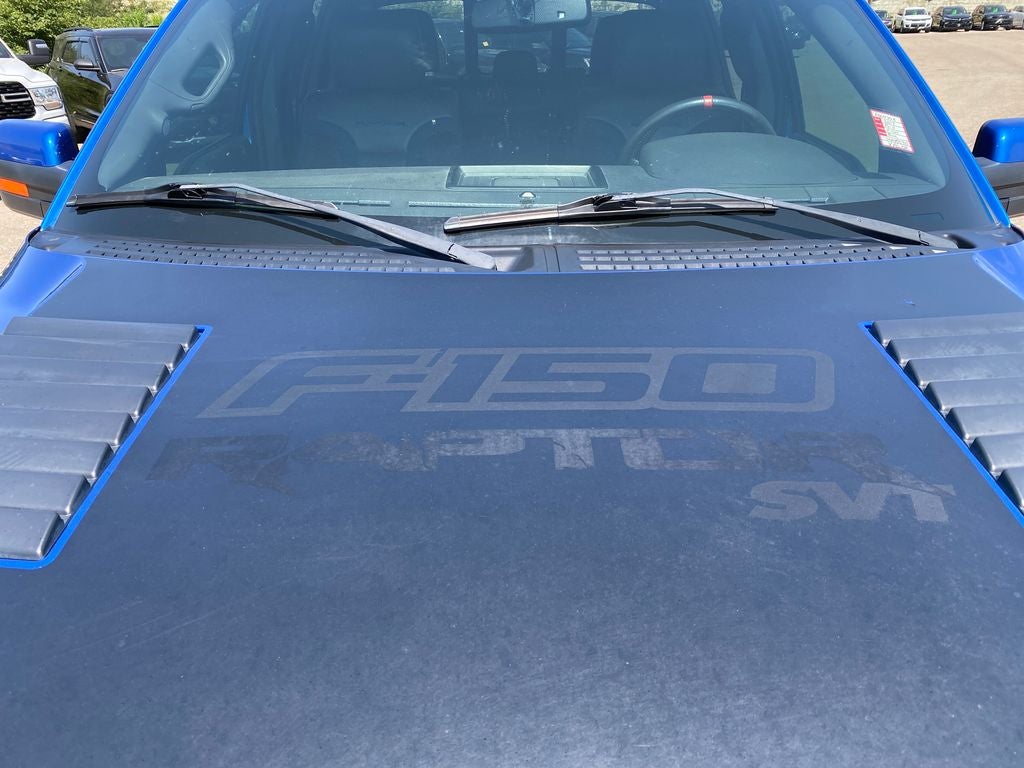

• Hood w/air extractors
• Body-color front bumper fascia
• Unique front/rear bumper w/painted foundry finish
• Cast aluminum running boards
• Unique front/rear wheel lip moldings

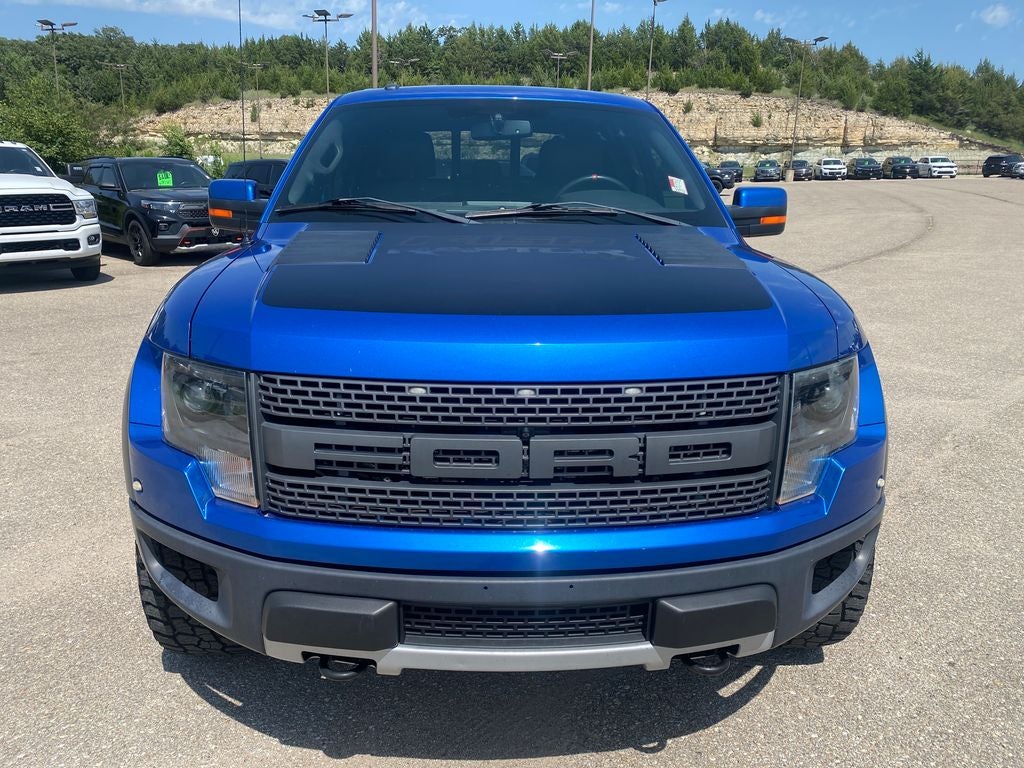

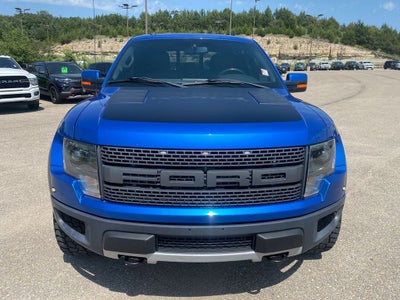

• Brick wall front grille
• Headlamps & tail lamps w/black surround
• Integrated marker lights
• Pwr side mirrors w/body-color skull caps
• Pwr sliding rear window
• Rear privacy tint glass
• Variable interval wipers
• Flared front fenders w/air extractors
• (4) full-size doors

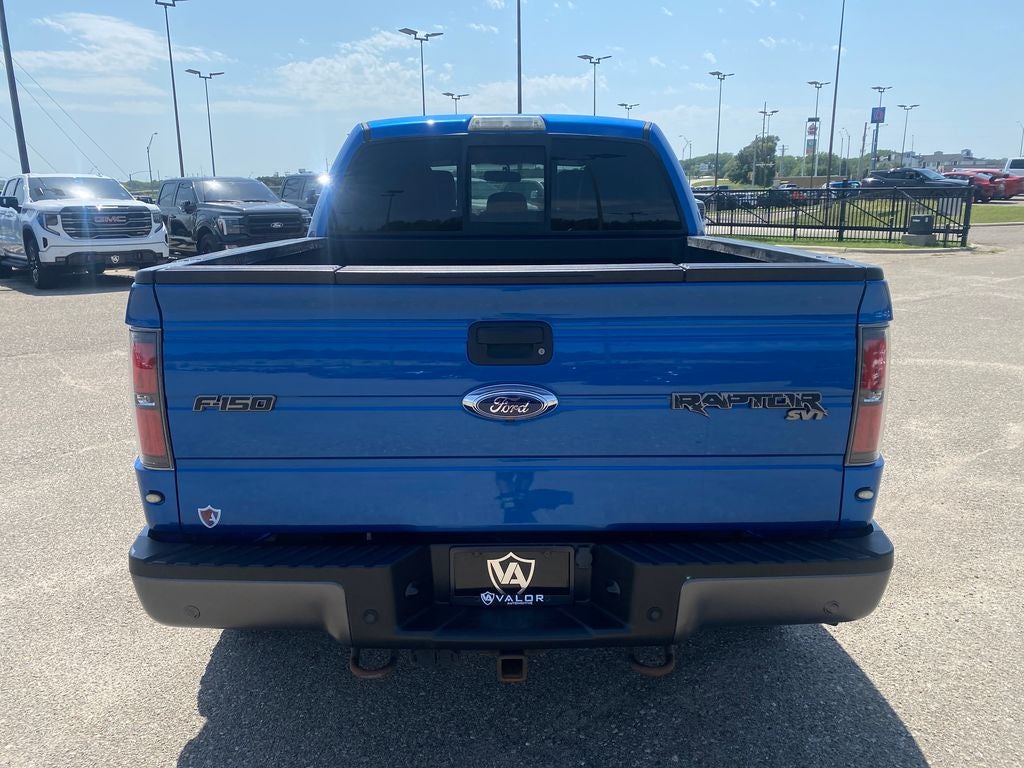

• Removable tailgate w/key lock & lift assist

• AM/FM stereo w/CD player -inc: clock
• SiriusXM satellite radio *N/A in AK or HI*
• SYNC voice activated communications & entertainment system -inc: Bluetooth capability, steering wheel audio controls, USB port, audio input jack, 911 assist, vehicle health report, Applink *Additional SYNC services available w/annual subscription fee*

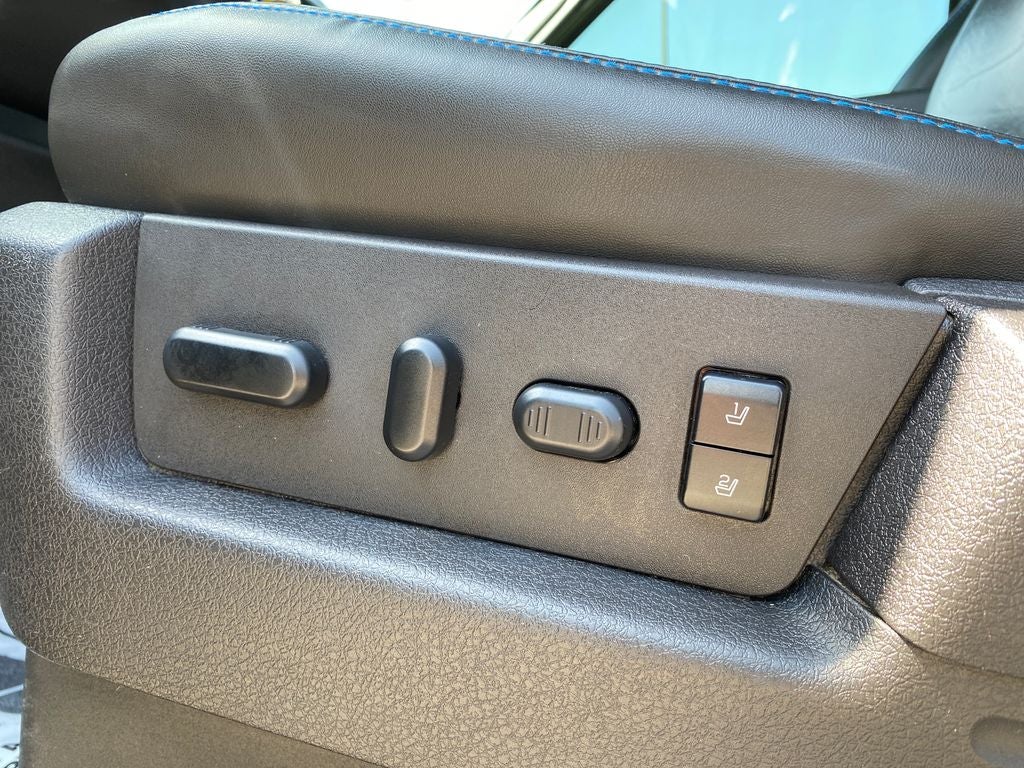

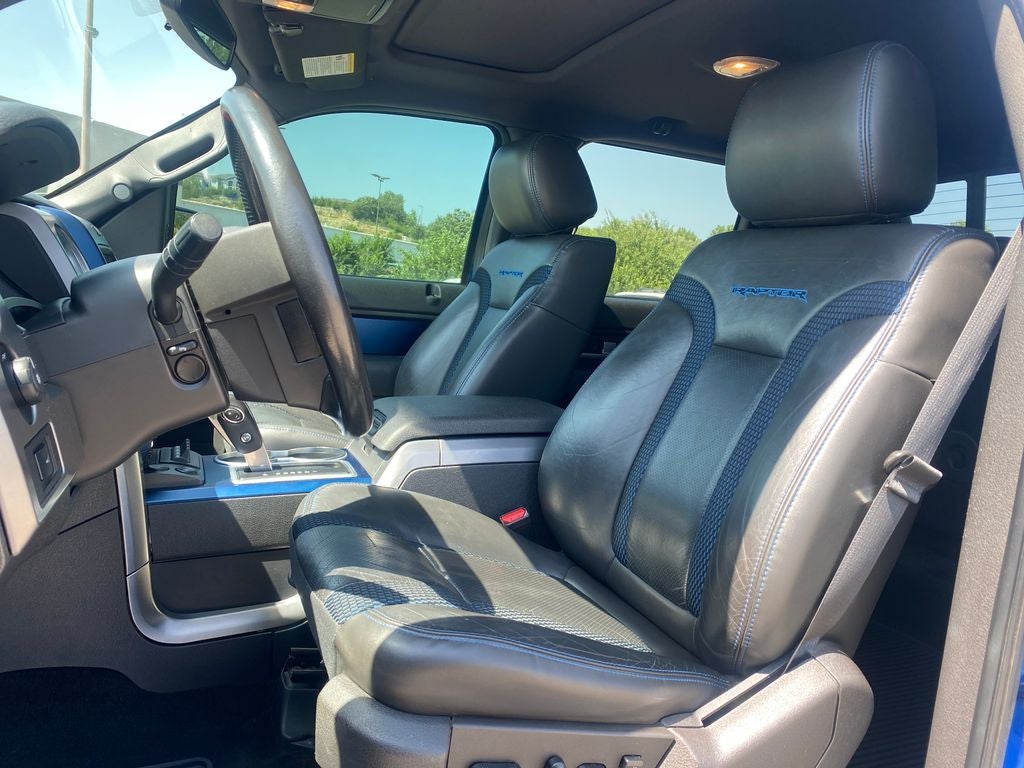

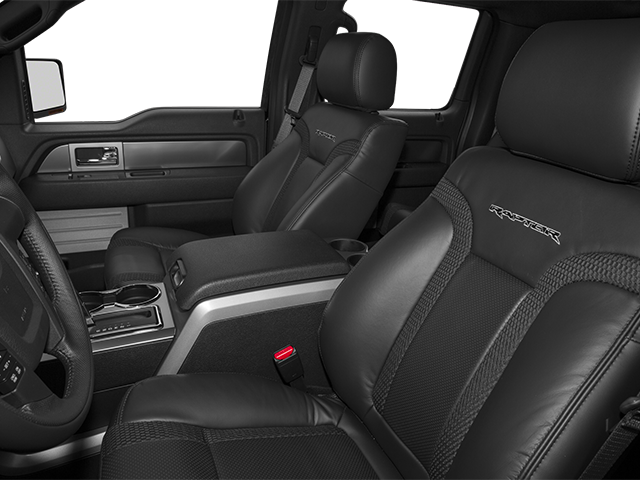

• Unique leather/cloth bucket seats w/6-way pwr driver seat, seat back bolsters

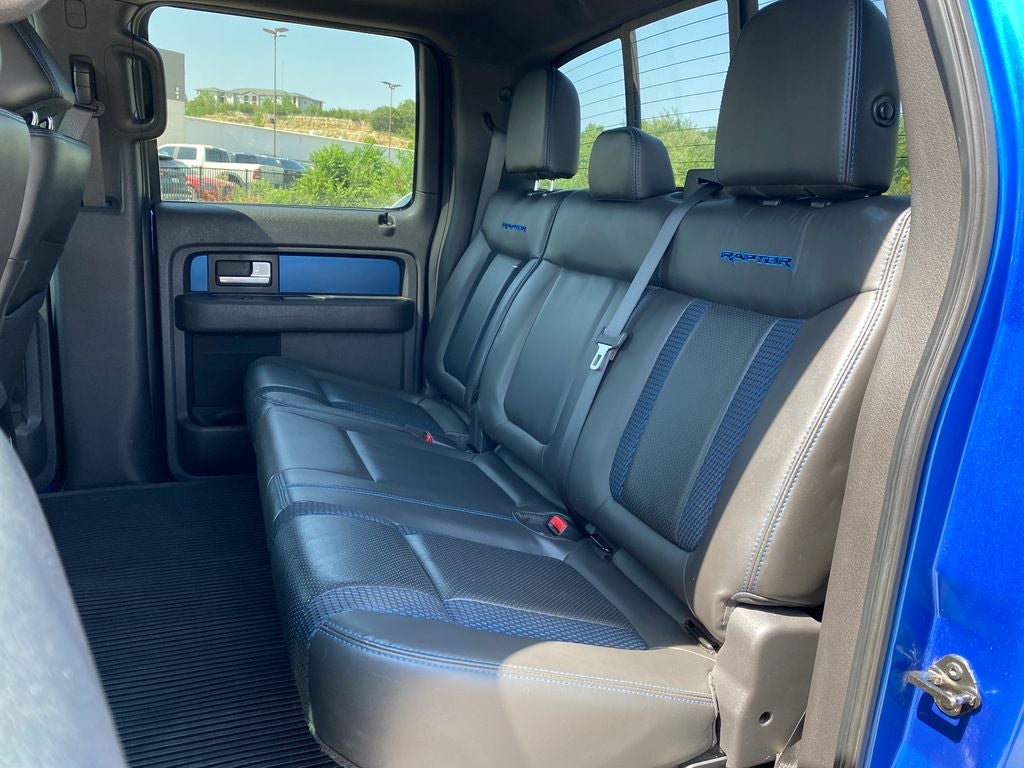

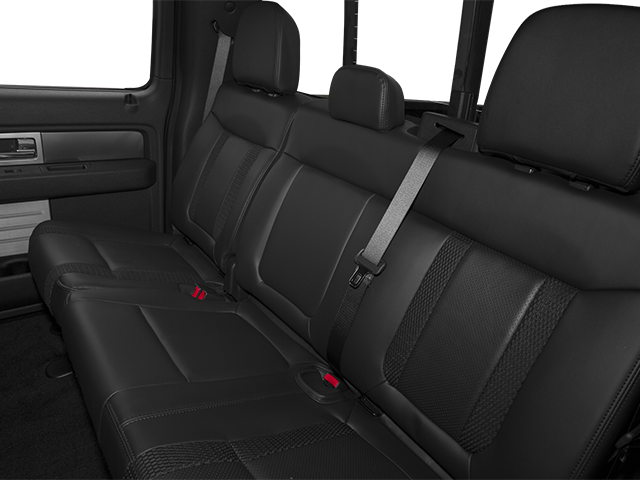

• Unique 60/40 flip-up rear split bench seat

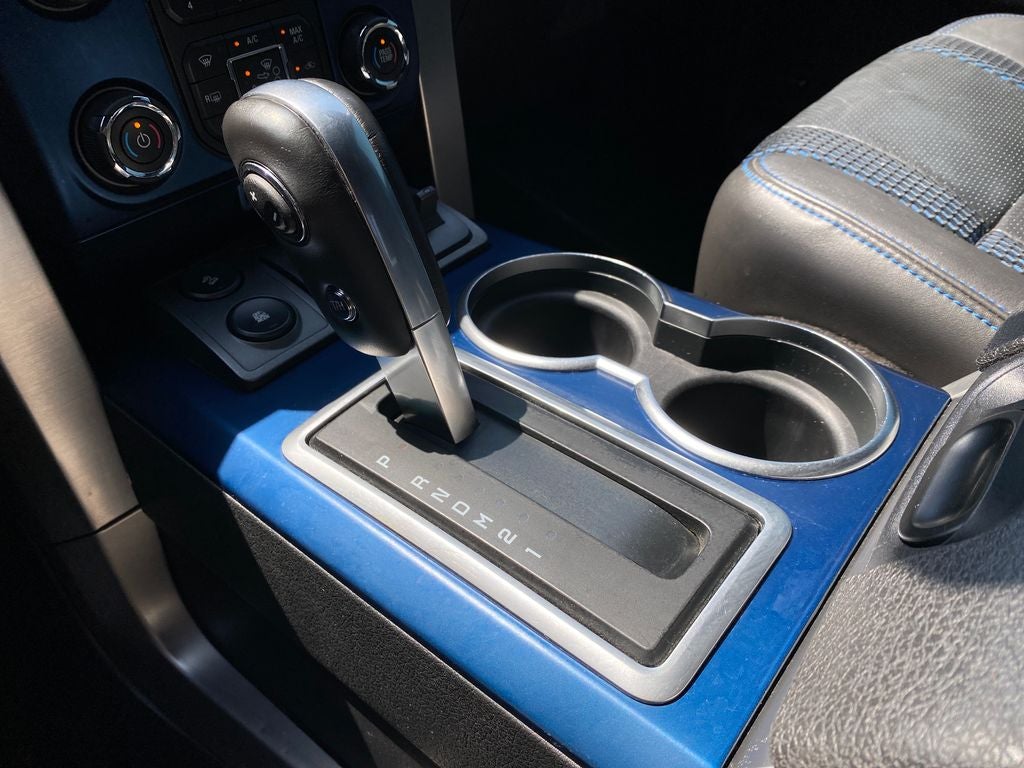

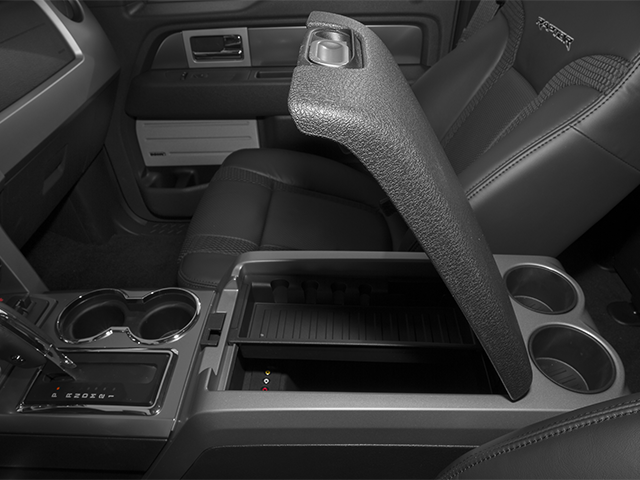

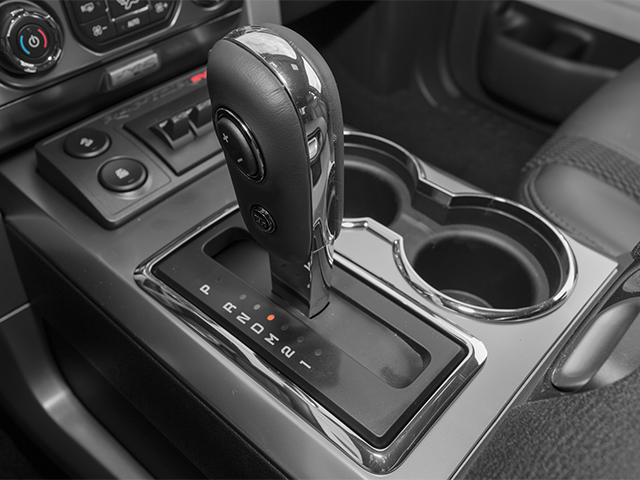

• Front flow-through console w/floor shifter
• Color-coordinated carpet -inc: unique front/rear rubber floor mats w/SVT logo on front mats

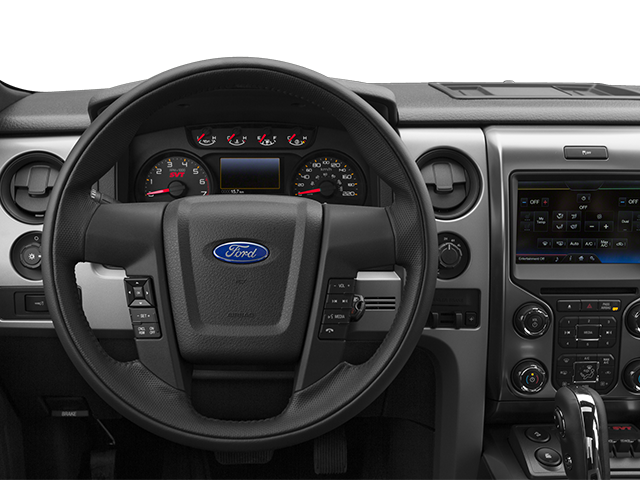

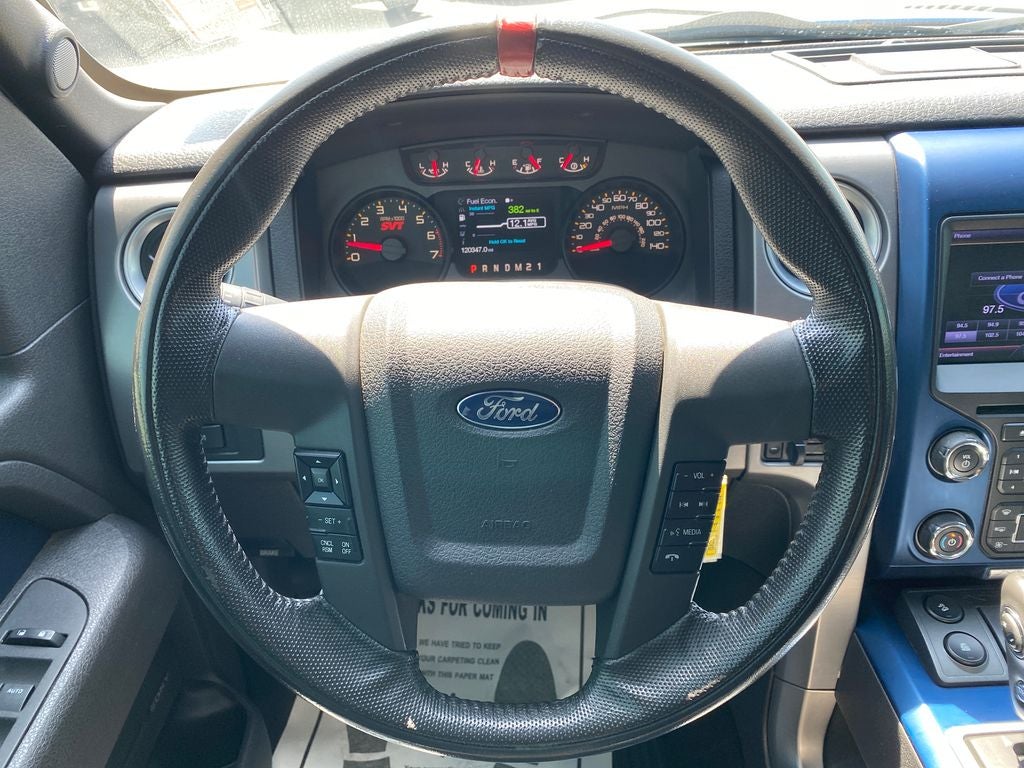

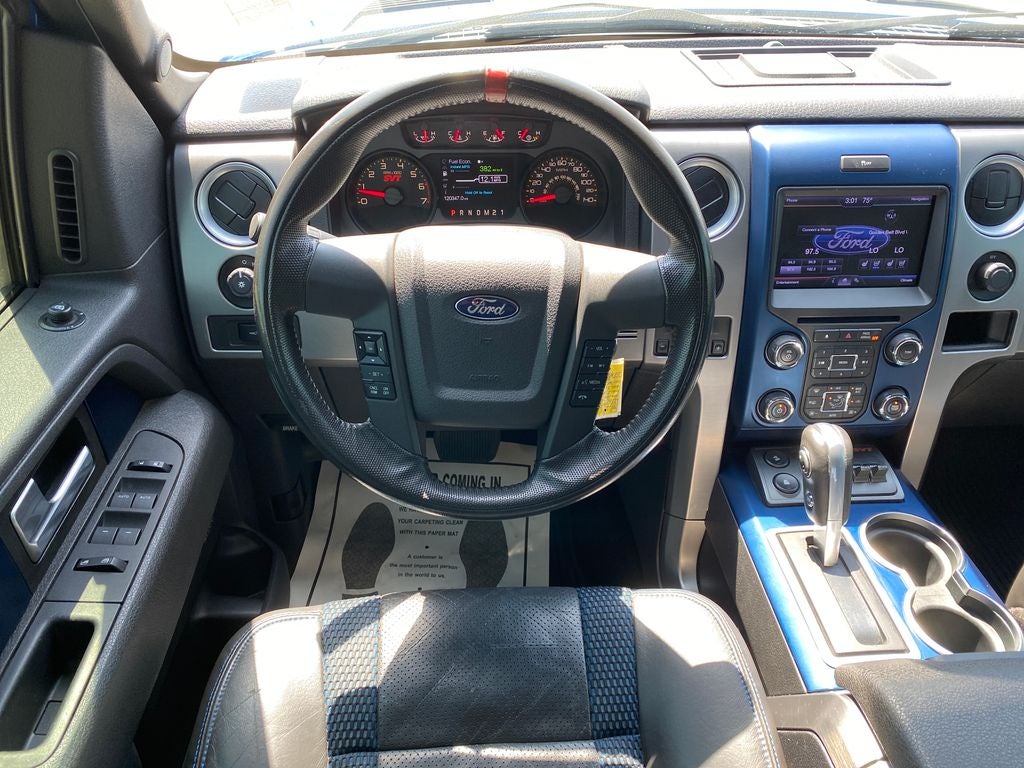

• Unique leather-wrapped steering wheel w/thumb pads
• Tilt steering column
• MyFord -inc: 5-way steering wheel control switch, 4.2" LCD audio/climate control screen in center stack, 4.2" LCD productivity screen message center w/trip computer

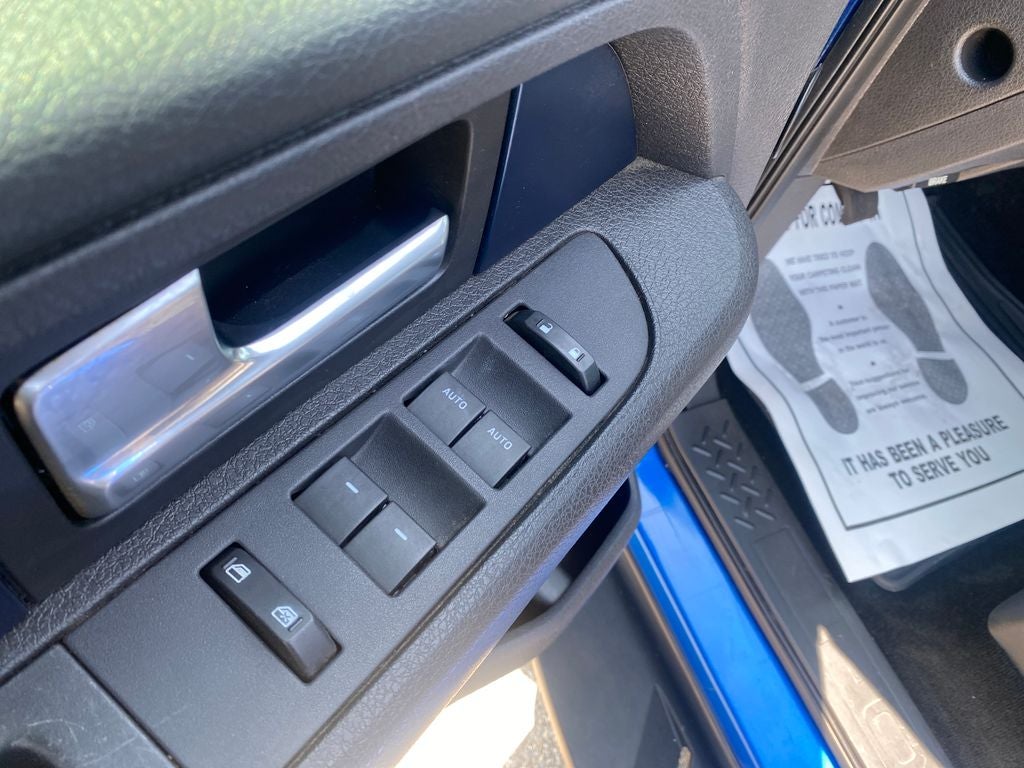

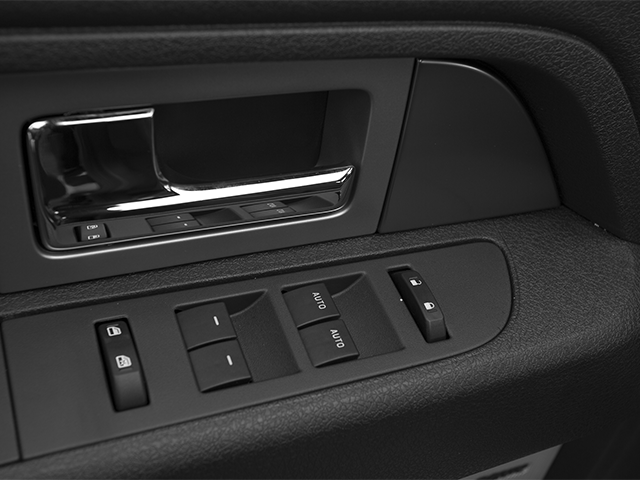

• Pwr 1st & 2nd row windows
• Pwr door locks w/autolock feature
• Perimeter alarm

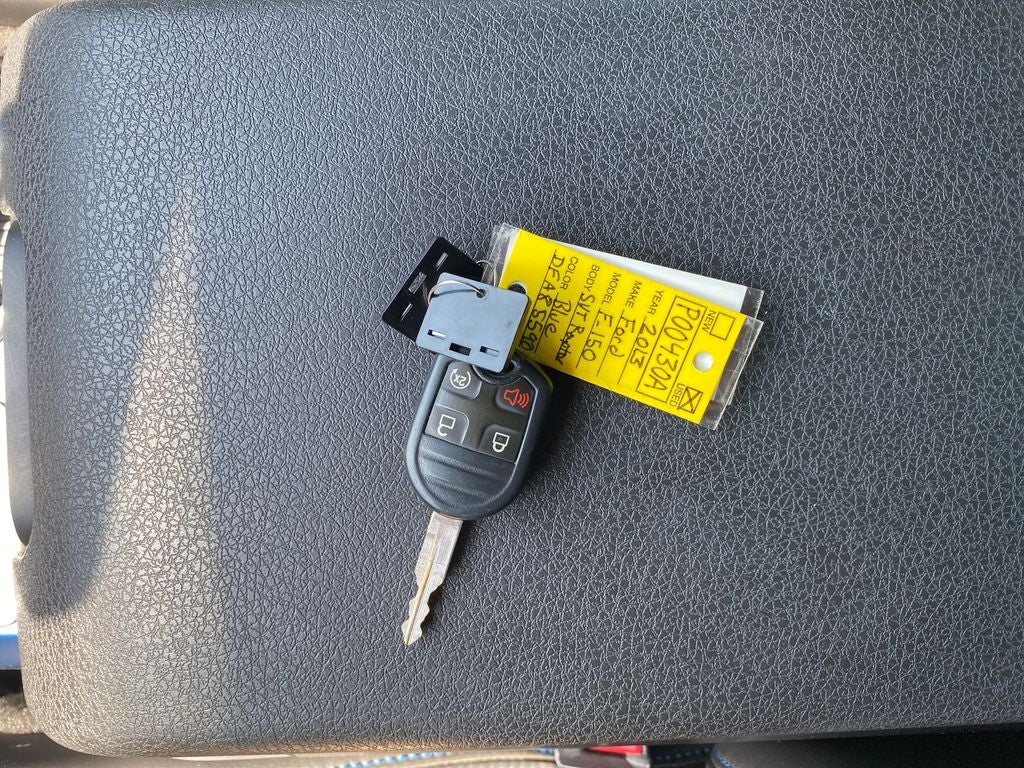

• Remote keyless entry key
• Driver side SecuriCode keyless entry keypad
• Cruise control
• SecuriLock passive anti-theft system (PATS)
• Manual air conditioning
• Rear window defroster
• Front pwr point
• Rear pwr point

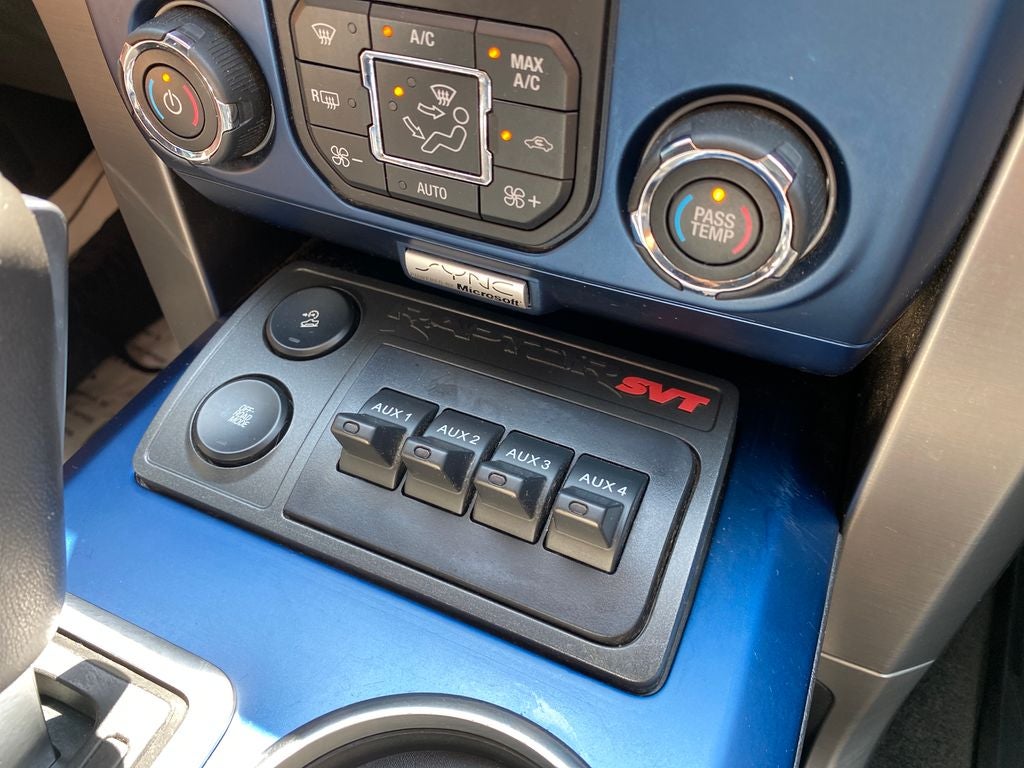

• Console top switches -inc: hill decent, easy off-road mode, aux switch pack
• Unique IP center stack & door trim applique finish
• Front passenger side A-pillar grab handle
• 2nd row B-pillar grab handles
• Illuminated entry

• Anti-lock braking system (ABS)
• AdvanceTrac w/Roll Stability Control (RSC)
• Hill start assist
• Hill descent control
• Dual stage driver & passenger front airbags
• Dual stage driver & front passenger seat-mounted side airbags
• Safety Canopy front/rear outboard side curtain airbags
• MyKey owner controls feature -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute
• Reverse sensing system
• SOS post crash alert system
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Auto lock safety belt feature for child seats
• Tire pressure monitoring system
• Dual note horn

LUXURY EQUIPMENT GROUP

• heated/cooled 10-way pwr 40/console/40 front seats w/driver seat memory

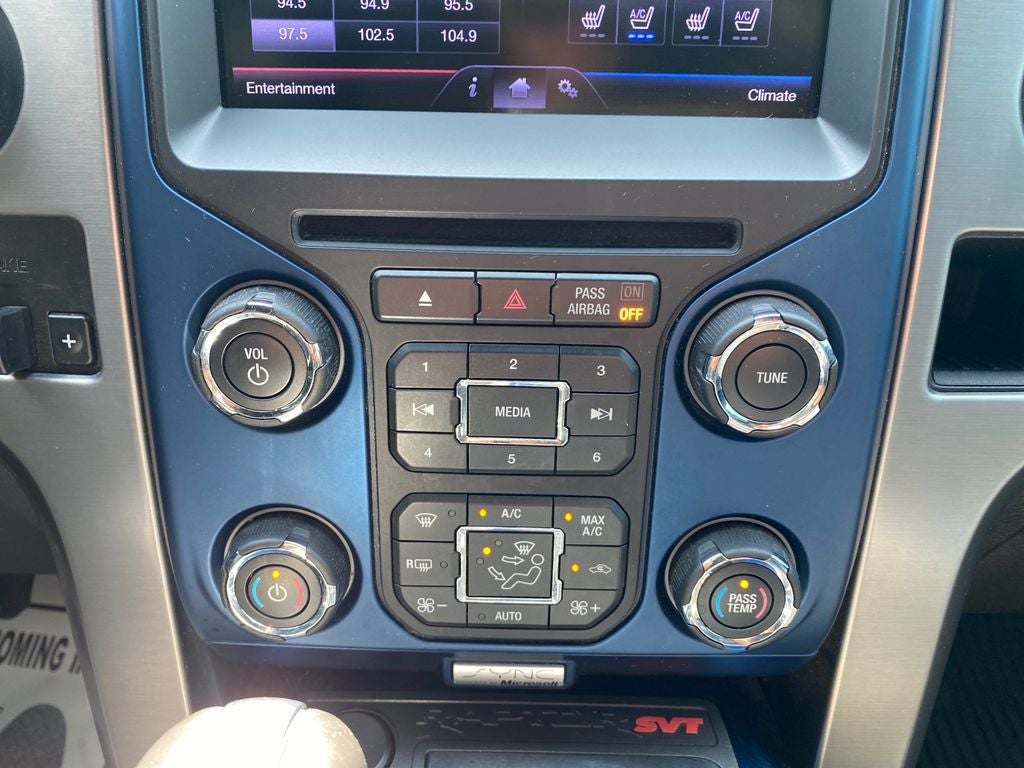

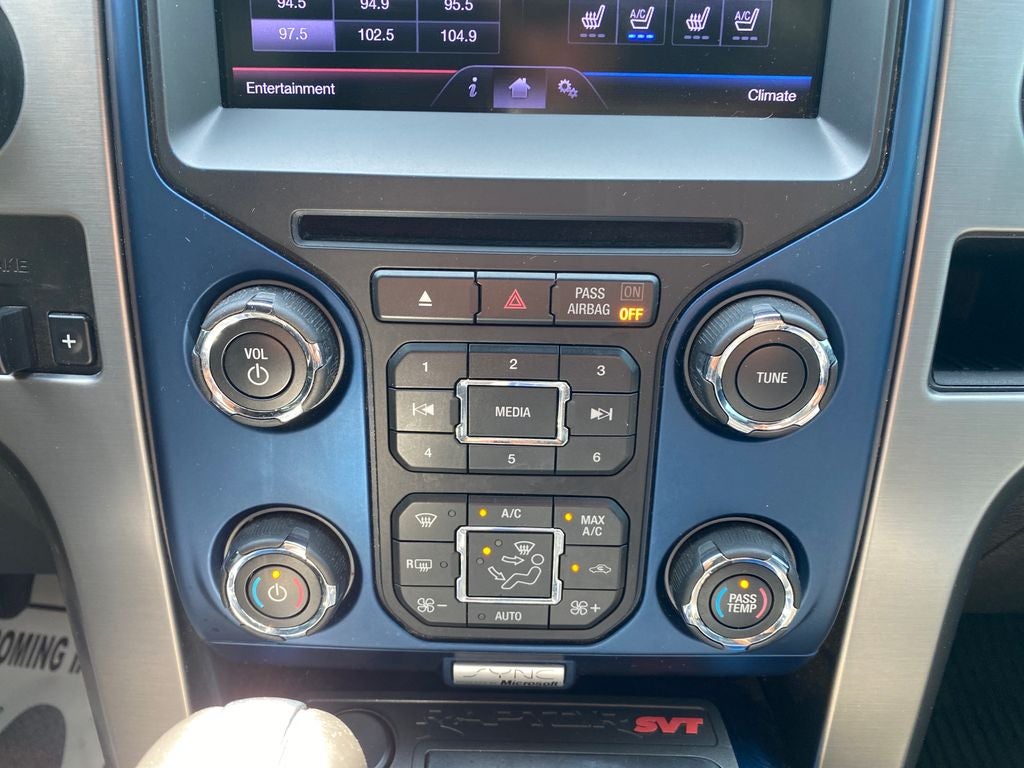

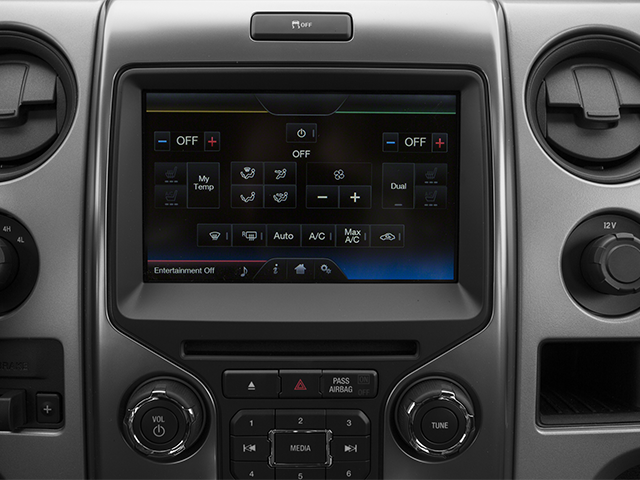

• dual-zone electronic auto temp control
• HID headlamps

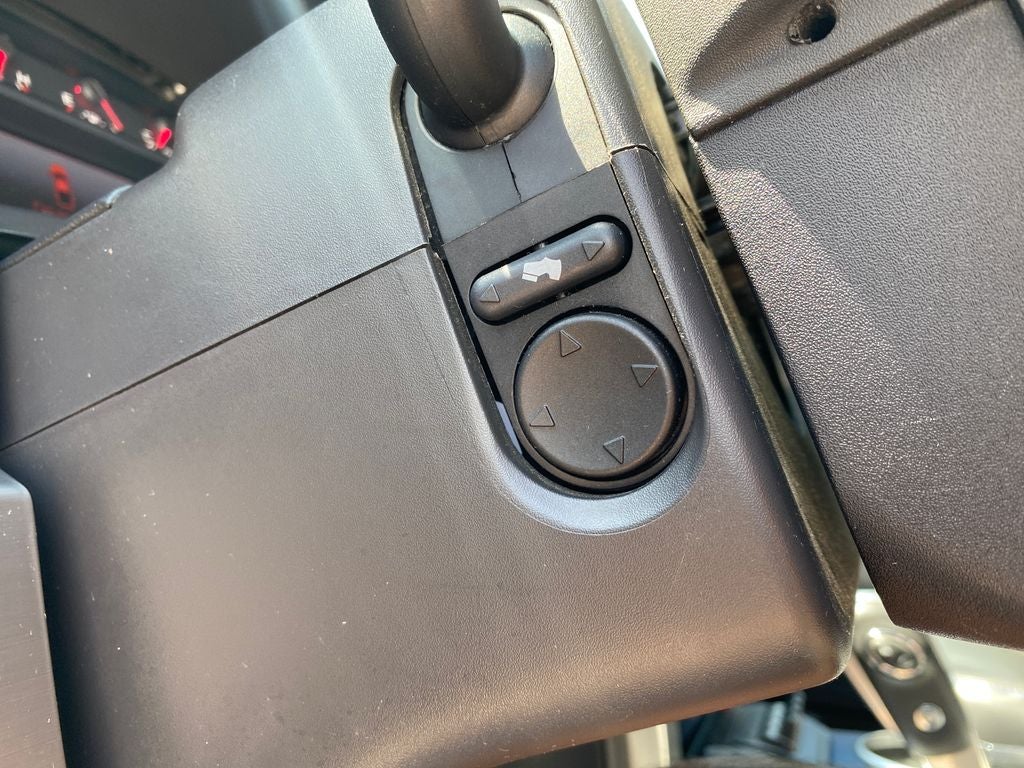

• pwr adjustable pedals w/memory

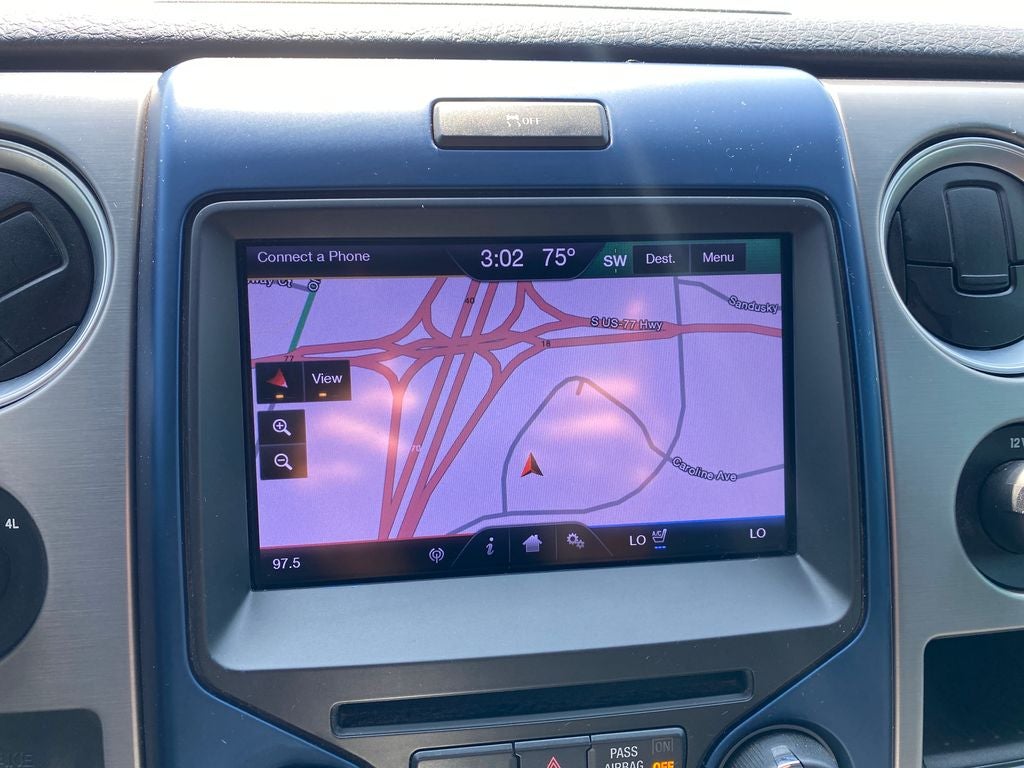

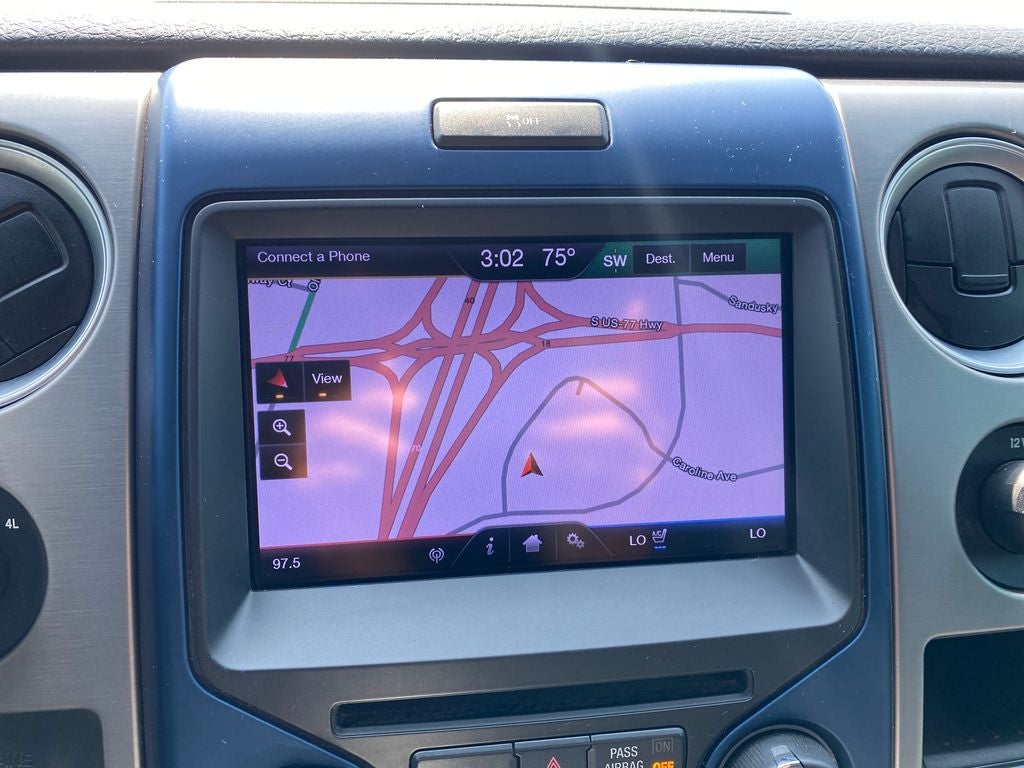

• voice-activated navigation system w/in-dash screen & SD card for map/POI storage
• integrated SiriusXM Travel Link w/6-month subscription
• pwr tilt/telescopic steering column
• pwr-folding heated exterior mirrors w/integrated turn signals & body-color skull caps
• driver side auto-dimming exterior mirror
• mirror memory

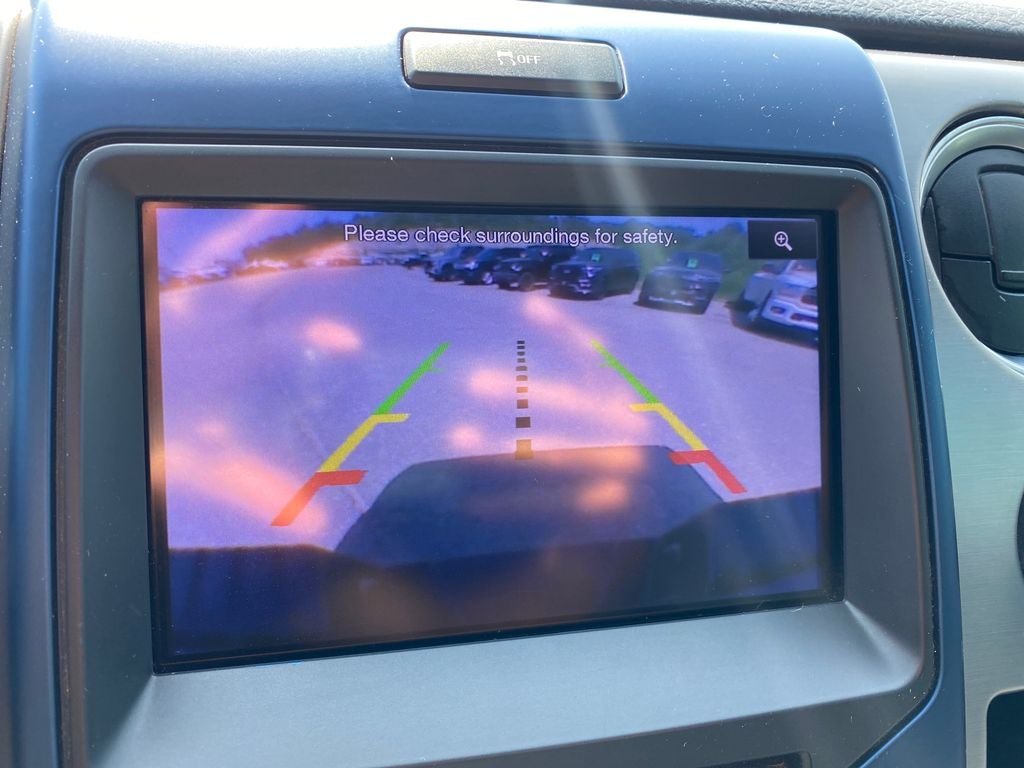

• rearview camera
• remote start

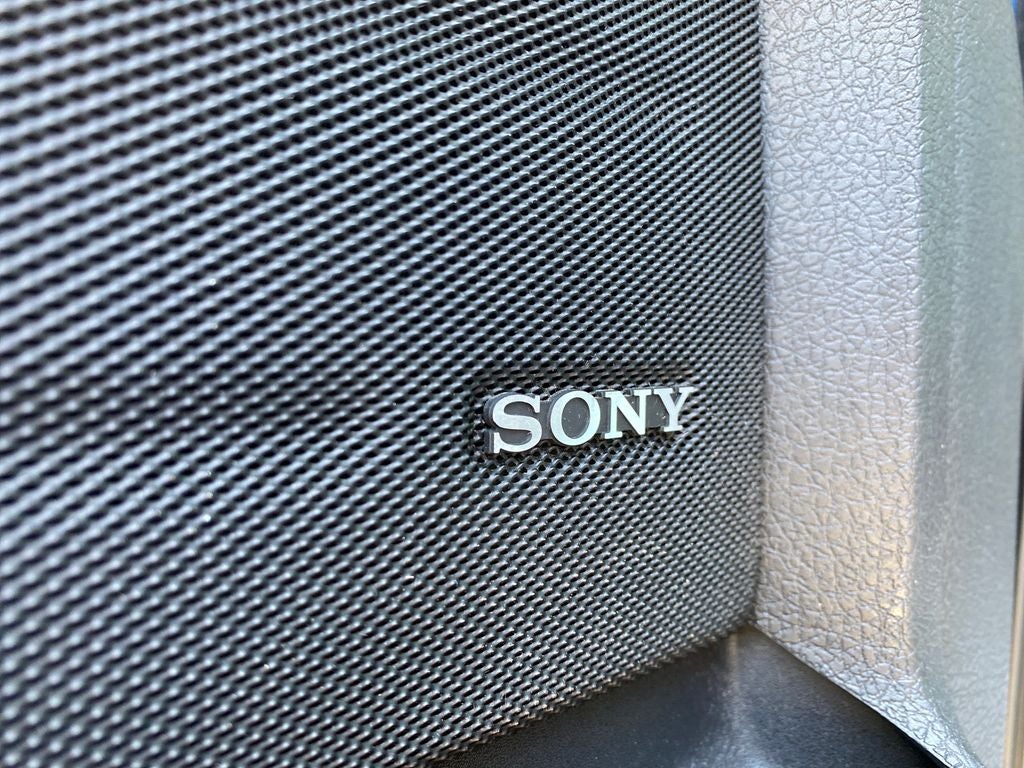

• Sony AM/FM stereo w/CD player
• HD Radio

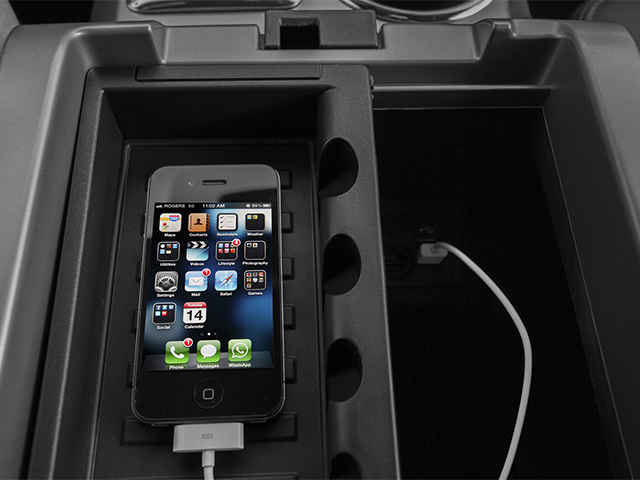

• media hub w/(2) USB ports
• audio/video input jacks
• SD card reader
• SYNC services 3-year prepaid subscription w/GPS based turn-by-turn driving directions & traffic reports & info services
• MyFord Touch w/5-way steering wheel control switch

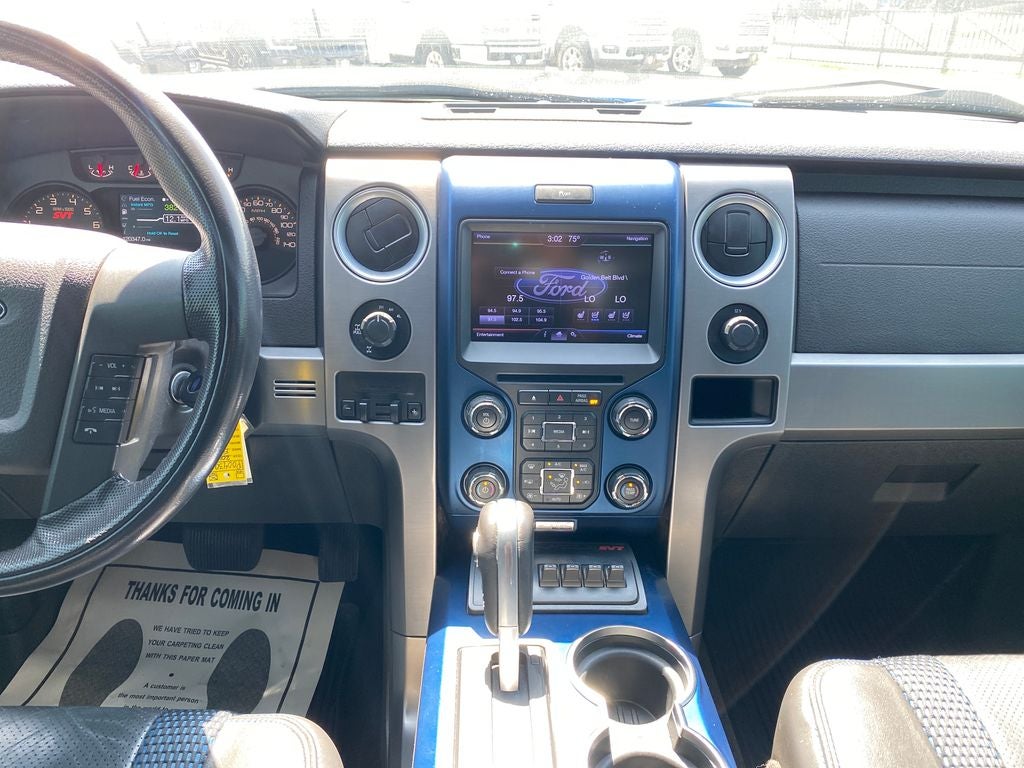

• 8" LCD touch screen in center stack

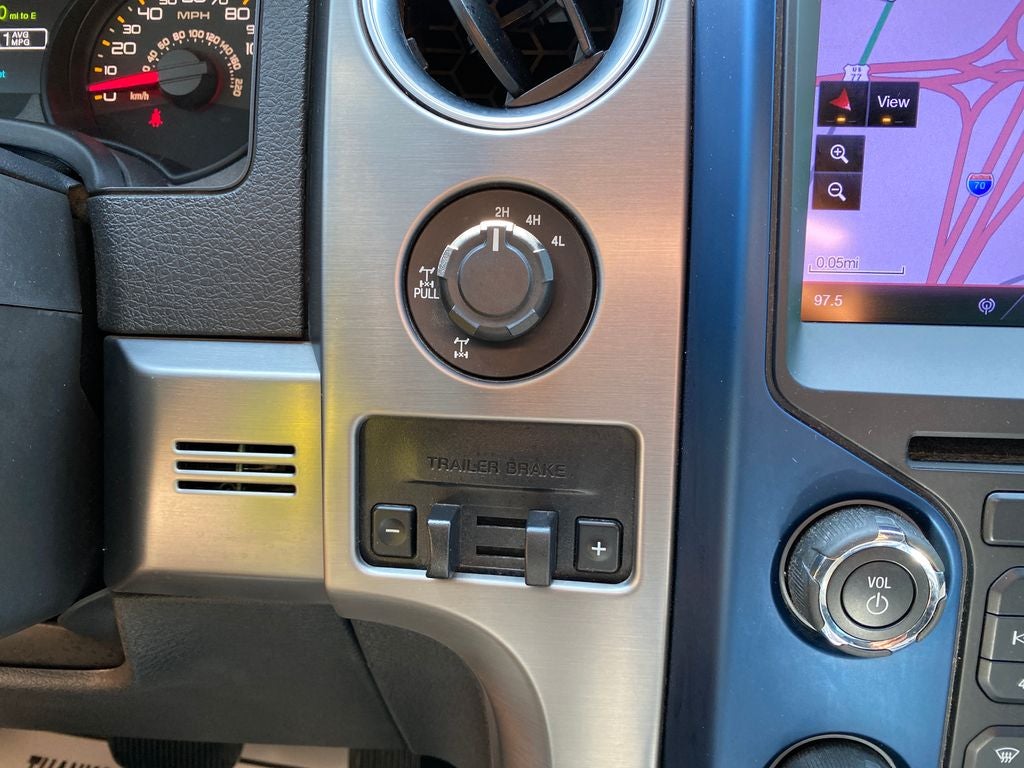

• trailer brake controller
• universal garage door opener

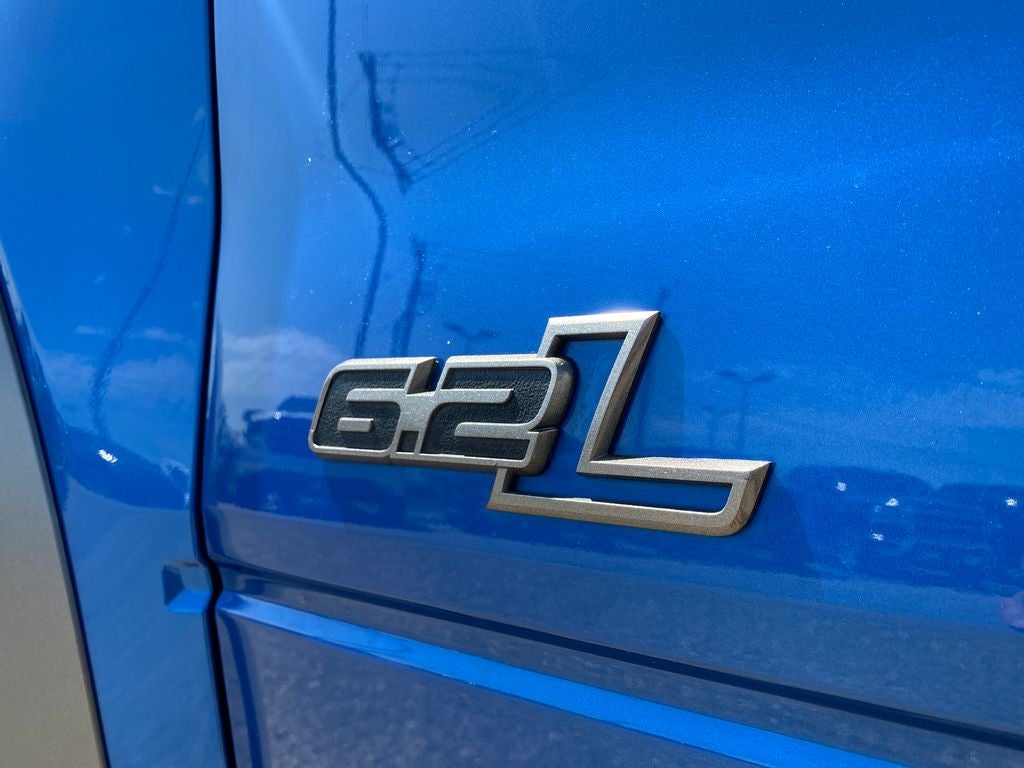

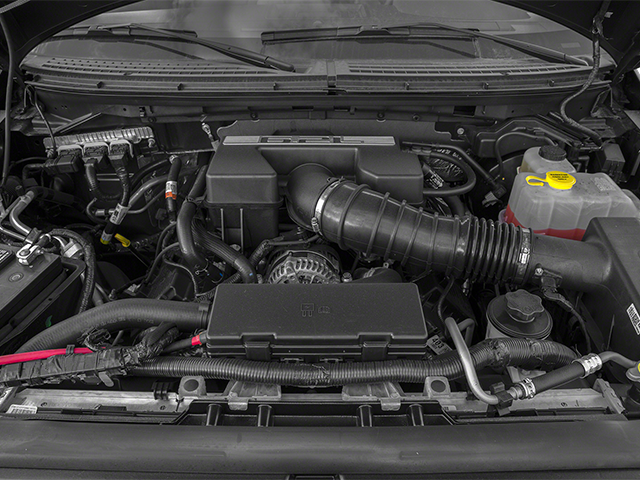

6.2L EFI V8 ENGINE

• (STD)

6-SPEED ELECTRONIC AUTOMATIC TRANSMISSION W/OD & TOW/HAUL MODE

• (STD)

BASE EQUIPMENT GROUP

• std equipment

• Equipment Group 800A Base
• Equipment Group 801A Luxury
• Raptor Luxury Package
• 10-Way Power Driver & Passenger Seats
• 12V power outlets 3 12V power outlets
• 17' Cast Aluminum Wheels
• 3-point seatbelt Rear seat center 3-point seatbelt
• 4 Speakers
• 4-Wheel Disc Brakes
• 4WD type Part-time 4WD
• 6-Way Power Adjuster (Driver's Side Only)
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Accessory power Retained accessory power
• Adjustable head restraints: driver and passenger w/tilt
• Adjustable pedals Power adjustable pedals
• Air Conditioning
• Air conditioning Yes
• All-in-one key All-in-one remote fob and ignition key
• Alloy wheels
• Alternator Type Heavy-duty alternator
• AM/FM radio: SiriusXM
• AM/FM Single CD w/Clock
• Amplifier
• Antenna Fixed audio antenna
• App Link Smart device integration SYNC AppLink smart device app link
• Armrests front center Front seat center armrest
• Auto door locks Auto-locking doors
• Auto headlights Auto on/off headlight control
• Auto tilt steering wheel Auto tilt-away steering wheel
• Auto-dimming door mirror driver Auto-dimming driver side mirror
• Auto-dimming Rear-View mirror
• Aux input jack Auxiliary input jack
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery run down protection
• Battery type Heavy-duty lead acid battery

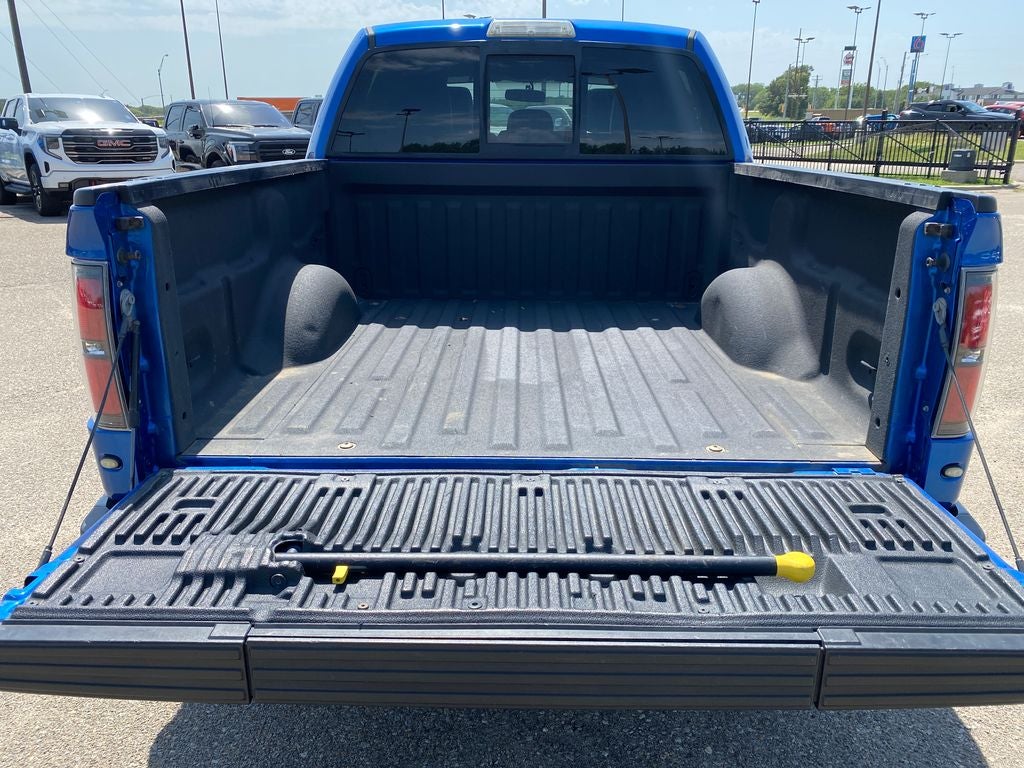

• Bed liner Spray-in pickup bed liner
• Bed-rail protectors Pickup bed-rail protectors
• Beverage holders Front beverage holders
• Beverage holders rear Rear beverage holders
• Body panels Galvanized steel/aluminum body panels with side impact beams
• Box style Standard style pickup box
• Brake type 4-wheel disc brakes
• Bulb warning Bulb failure warning
• Bumper rub strip front Body-colored front bumper rub strip
• Bumpers front Black front bumper
• Bumpers rear Black rear bumper
• Cab mounted cargo light
• Cabback insulator
• Capless fuel filler Easy Fuel capless fuel filler
• CD location CD player located in the dashboard/instrument panel
• CD player
• CD Single-disc CD player
• CD-R compatible
• Child door locks Manual rear child safety door locks
• Cigarette lighter Front cigarette lighter
• Clearance lights Cab clearance lights
• Climate control Automatic climate control
• Clock Digital clock
• Compass
• Console insert material Metal-look console insert
• Convex spotter Driver convex spotter mirror
• Cooled front seats Ventilated driver and front passenger seats
• Corrosion perforation warranty 60 month/unlimited
• Cruise control Cruise control with steering wheel mounted controls
• Cylinder head material Aluminum cylinder head
• Day/Night rearview mirror
• Delay off headlights Delay-off headlights
• Delay-off headlights
• Digital signal processor
• Door ajar warning
• Door bins front Driver and passenger door bins
• Door bins rear Rear door bins
• Door handle material Black door handles
• Door locks Power door locks with 2 stage unlocking
• Door mirror style Body-colored door mirrors
• Door mirror type Standard style side mirrors
• Door mirrors Power door mirrors
• Door panel insert Metal-look door panel insert
• Drive type Four-wheel drive
• Driver door bin
• Driver lumbar Driver seat with 2-way power lumbar
• Driver seat direction Driver seat with 8-way directional controls
• Driver vanity mirror
• Dual Electronic Automatic Temperature Control
• Dual front impact airbags
• Dual front side impact airbags
• Dual-zone front climate control
• DVD-audio DVD-audio playback capability
• Easy lift tailgate
• Easy lower tailgate
• Electronic Locking w/4.10 Axle Ratio
• Electronic Stability Control
• Electronic stability control AdvanceTrac w/Roll Stability Control electronic stability control system with anti-roll
• Emissions Federal emissions
• Emissions tiers Tier 2 Bin 4 emissions
• Engine block material Iron engine block
• Engine Configuration Triton V8
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine Short Triton 6.2L V-8
• Engine temperature warning
• Engine Triton 6.2L V-8 variable valve control, regular unleaded, engine with 411HP
• Engine/electric motor temperature gauge
• Exterior Graphics Package
• External door locks SecuriCode external keypad door lock control
• External memory SYNC with MyFord external memory control
• Fenders Black fender flares
• First-row windows Power first-row windows
• Floor console Full floor console

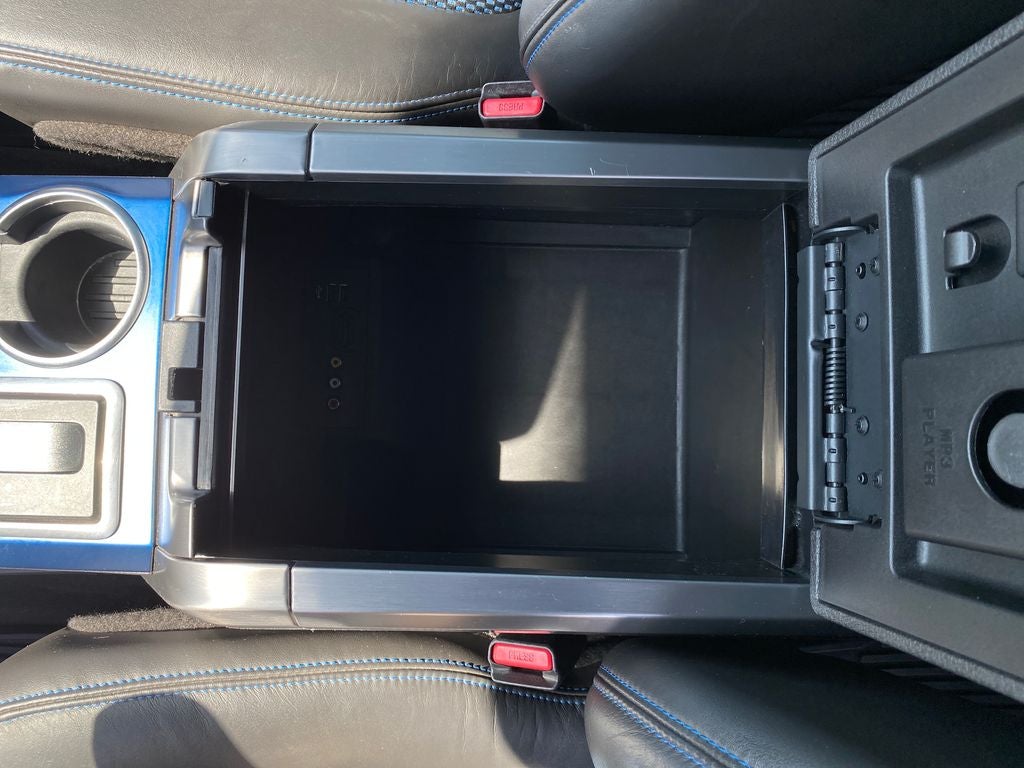

• Floor console storage Locking floor console storage
• Floor coverage Full floor coverage
• Floor covering Full carpet floor covering

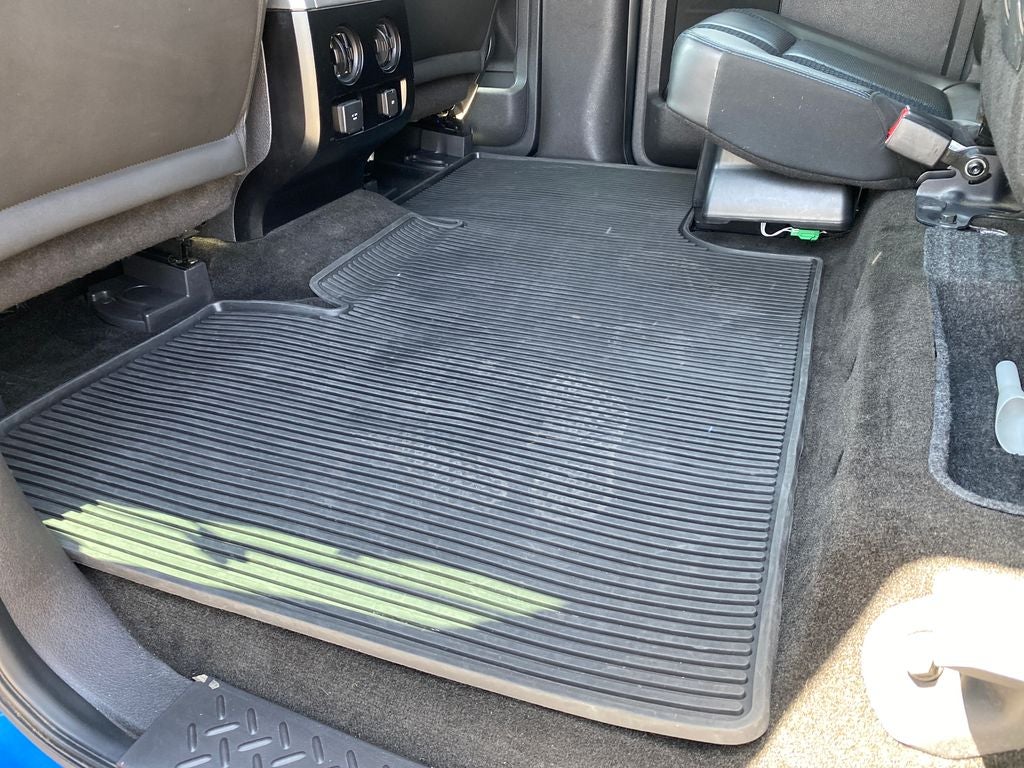

• Floor mats Rubber front and rear floor mats
• Fog lights Front fog lights
• Folding door mirrors PowerFold power folding door mirrors
• Folding rear seats 60-40 folding rear seats
• Front anti-roll bar
• Front anti-roll Heavy-duty front anti-roll bar
• Front Bucket Seats
• Front camera Front mounted camera
• Front Center Armrest
• Front fog lights
• Front head restraint control Manual front seat head restraint control
• Front head restraints Height and tilt adjustable front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Passenger front impact airbag
• Front License Plate Bracket
• Front passenger lumbar Front passenger seat with 2-way power lumbar
• Front reading lights
• Front seat upholstery Cloth and leather front seat upholstery
• Front seatback upholstery Cloth front seatback upholstery
• Front side impact airbag driver Seat mounted side impact driver airbag
• Front side impact airbag passenger Seat mounted side impact front passenger airbag
• Front wheel independent suspension
• Front/Rear View Camera
• Fuel Type Regular unleaded
• Fully automatic headlights
• Garage door opener
• Gearshifter material Leather and chrome gear shifter material

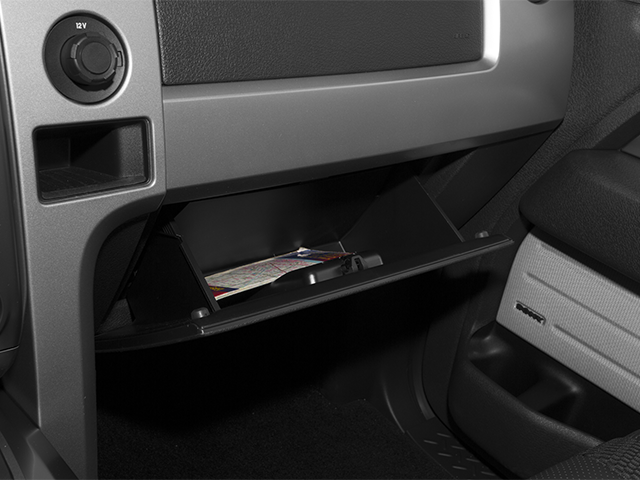

• Glove box Standard glove box
• Grille style Black grille
• GVWR: 7,450 lbs Payload Package
• Handsfree Bluetooth® handsfree wireless device connectivity
• HD front springs Heavy-duty front springs
• Headlight type Projector beam headlights
• Headlights High-intensity discharge low and high beam headlights
• Headlights on reminder
• Headliner coverage Full headliner coverage
• Headliner material Cloth headliner material
• Heated door mirrors Heated driver and passenger side door mirrors
• Heated front seats Heated driver and front passenger seats
• Heated PowerFold Side Mirrors w/Memory
• Heated/Cooled Driver & Passenger Seats
• Height adjustable seatbelts Front and rear height adjustable seatbelts
• High mount stop light High mounted center stop light
• High-Intensity Discharge Headlamps
• Hill control Hill descent control
• Hill start assist
• Hood Graphics Package
• Ignition Spark ignition system
• Ignition type Mechanical
• Illuminated entry
• Immobilizer SecuriLock immobilizer
• Inclinometer
• Instrumentation display Analog instrumentation display
• Integrated navigation Integrated navigation system with voice activation

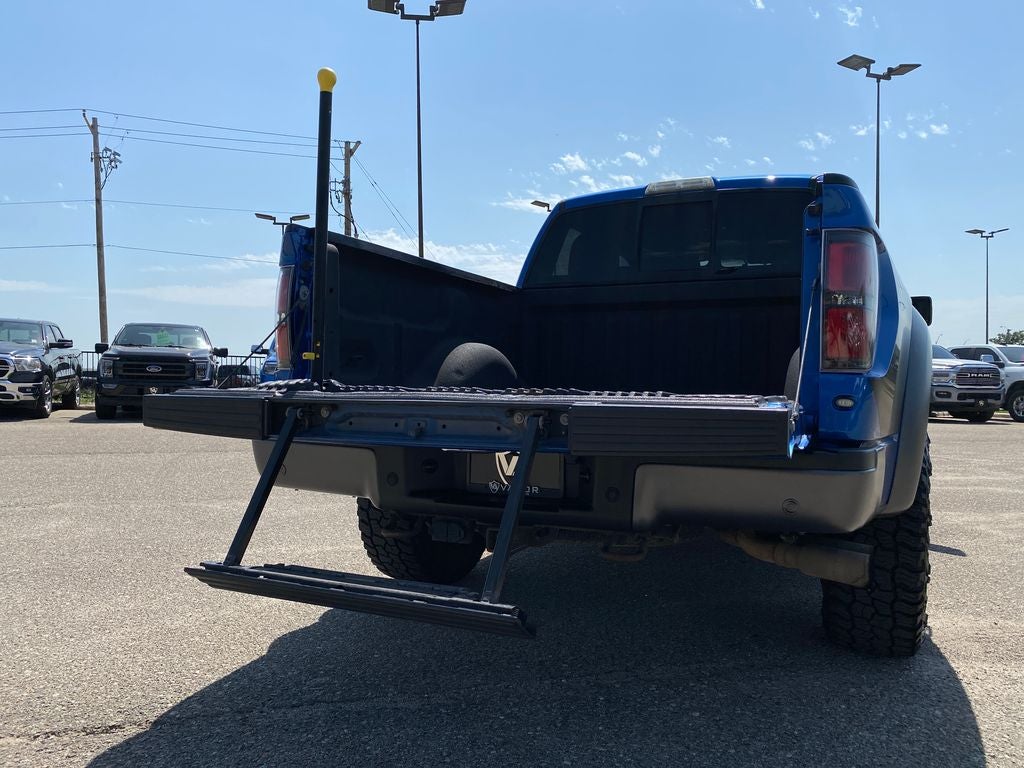

• Integrated tailgate step

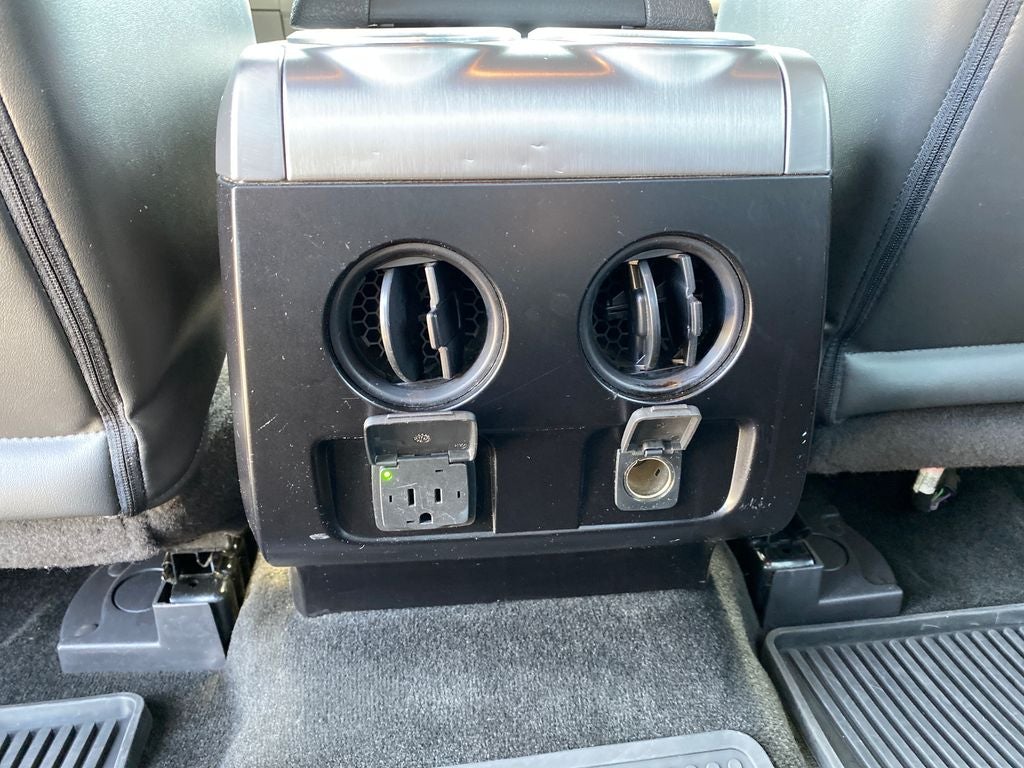

• Interior 120V AC power outlets 1 interior 120V AC power outlet
• Interior accents Chrome interior accents
• Interior courtesy lights Fade interior courtesy lights
• Key in vehicle warning
• Keyfob keyless entry
• Keyfob remote start
• Leather steering wheel
• License plate front bracket Front license plate bracket
• Limited slip differential Torsen mechanical limited slip differential
• Lock-up transmission
• Locking hub control Auto locking hub control
• Low level warnings Low level warning for fuel, washer fluid and brake fluid
• Low tire pressure warning
• Manual driver seat controls Driver seat manual reclining and lumbar support
• Manual passenger seat controls Passenger seat manual reclining, lumbar support and fore/aft control
• Memory settings Memory settings include: door mirrors, steering wheel and pedals
• Memory System
• Navigation
• Number of airbags 6 airbags
• Number of beverage holders 8 beverage holders
• Number of doors 4 doors
• Number of first-row screens 2 total number of 1st row displays
• Number of memory settings 2 memory settings
• Occupancy sensor Airbag occupancy sensor
• Occupant sensing airbag
• Oil pressure gauge
• Oil pressure warning
• One-touch down window Driver and passenger one-touch down windows
• One-touch up window Driver and passenger one-touch up windows
• Outside temperature display
• Overdrive transmission
• Overhead airbag
• Overhead airbags Safety Canopy System curtain first and second-row overhead airbags
• Overhead console
• Overhead console Full overhead console
• Overhead console Mini overhead console
• Overhead console storage
• Overhead Console w/Single Storage Bin
• Paint Metallic paint
• Panel insert Metal-look instrument panel insert
• Panic alarm
• Parking sensors Rear parking sensors
• Passenger door bin
• Passenger doors rear left Conventional left rear passenger door
• Passenger doors rear right Conventional right rear passenger door
• Passenger seat direction Front passenger seat with 8-way directional controls
• Passenger vanity mirror
• Perimeter approach lighting Remote activated perimeter approach lighting
• Power Adjustable Pedals w/Memory
• Power door mirrors
• Power driver seat
• Power driver seat controls Driver seat power reclining, lumbar support, cushion tilt, fore/aft control and height adjustable control
• Power Moonroof
• Power passenger seat controls Passenger seat power reclining, lumbar support, cushion tilt, fore/aft control and height adjustable control
• Power steering
• Power Tilt/Telescoping Steering Wheel
• Power windows
• Powertrain type ICE
• Powertrain warranty 60 month/60,000 miles
• Premium radio Sony radio
• Primary display size 4.2 inch primary display
• Radiator Heavy-duty radiator
• Radio AM/FM/digital/SiriusXMsatellite
• Radio data system
• Radio: Sony Single-CD w/HD
• RDS Radio data system (RDS)
• Real time traffic SIRIUS Travel Link real-time traffic
• Rear bumper step
• Rear camera Rear mounted camera
• Rear cargo door Tailgate
• Rear console climate control ducts
• Rear head restraint control 3 rear seat head restraints
• Rear head restraint control Manual rear seat head restraint control
• Rear head restraints Height adjustable rear seat head restraints
• Rear locking differential Driver selectable rear locking differential
• Rear Parking Sensors
• Rear reading lights
• Rear seat direction Front facing rear seat
• Rear seat folding position Fold-up rear seat cushion
• Rear seat upholstery Vinyl rear seat upholstery
• Rear seatback upholstery Carpet rear seatback upholstery
• Rear seats fixed or removable Fixed rear seats
• Rear seats Split-bench rear seat
• Rear Springs Heavy-duty rear springs
• Rear step bumper
• Rear under seat ducts Rear under seat climate control ducts
• Rear window defroster
• Rear windshield Power rear windshield
• Rear-View Camera
• Rearview mirror Auto-dimming rear view mirror
• Remote keyless entry
• Remote panic alarm
• Remote Start
• Restricted driving mode/alerts MyKey restricted driving mode/alerts
• Roadside warranty 60 month/60,000 miles
• Running boards
• Seatback storage pockets 2 seatback storage pockets
• Seatbelt pretensioners Front seatbelt pretensioners
• Seatbelt pretensioners number 2 seatbelt pre-tensioners
• Seating capacity 5
• Second-row windows Power second-row windows
• Seek scan
• Selectable mode transmission
• Sequential shift control SelectShift Sequential shift control
• Shock absorbers Fox Racing shock absorbers
• SiriusXM Satellite Radio
• Skid plate 1 underbody skid plate
• Spare tire Full-size spare tire with steel wheel
• Spare tire location Crank-down spare tire
• Speakers number 10 speakers
• Speakers Sony speakers
• Special paint Monotone paint
• Speed control
• Speed sensitive steering Speed sensitive power steering
• Speed sensitive volume
• Speed-sensing steering
• Split folding rear seat
• Split front seats Bucket front seats
• Spray-In Bed Liner (Pre-Installed)
• Springs front Front coil springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering mounted audio control Steering wheel mounted audio controls
• Steering type Rack-pinion steering
• Steering wheel material Leather steering wheel
• Steering wheel mounted audio controls
• Steering wheel telescopic Power telescopic steering wheel
• Steering wheel tilt Power tilting steering wheel
• Suspension Off-road ride suspension
• Suspension ride type front Independent front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension type front Double wishbone front suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailgate control Manual tailgate/rear door lock
• Tailgate Step
• Tailpipe Stainless steel single exhaust
• Telescoping steering wheel
• Temperature display Exterior temperature display
• Tilt steering wheel
• Tinted windows Deep tinted windows
• Tires LT315/70SR17 AT BSW front and rear tires
• Tow hooks front 2 front tow hooks
• Tow hooks rear 2 rear tow hooks
• Towing brake controller Trailer brake controller
• Towing class Class IV tow rating
• Towing hitch Trailer hitch
• Towing trailer sway Trailer sway control
• Towing wiring harness Trailer wiring harness
• Traction control
• Traction control All-speed ABS and driveline traction control
• Trailer Brake Controller
• Transfer case Electronic transfer case shift
• Transmission 6-speed automatic
• Transmission electronic control
• Transmission oil cooler Heavy-duty transmission oil cooler
• Transmission temperature gauge Transmission fluid temperature gauge
• Transmission Type Automatic
• Trip computer
• Trip odometer
• Turn signal in door mirrors Turn signal indicator in door mirrors
• Unique Leather/Cloth Front 40/Console/40 Seats
• Universal Garage Door Opener
• Upfitter switches
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Ventilated brakes Front and rear ventilated disc brakes
• Visor driver mirror Driver visor mirror
• Visor passenger mirror Passenger visor mirror
• Voice activated audio SYNC voice activated audio controls
• Wheels 17 x 8.5-inch front and rear black forged aluminum wheels
• Window Trim Black side window trim
• Wipers Variable intermittent front windshield wipers
• Wireless streaming Bluetooth® wireless audio streaming

• Mileage
• Fuel Economy Est-Combined (MPG): 13
• EPA Fuel Economy Est - City (MPG): 11
• EPA Fuel Economy Est - Hwy (MPG): 16
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 19.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4000
• Gross Axle Wt Rating - Rear (lbs): 3700
• Curb Weight - Front (lbs): 3459
• Curb Weight - Rear (lbs): 2654
• Gross Vehicle Weight Rating Cap (lbs): 7450
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1200
• Suspension
• Suspension Type - Front: Double-Wishbone
• Suspension Type - Rear: Live Axle
• Spring Capacity - Front (lbs): 4000
• Spring Capacity - Rear (lbs): 3700
• Axle Type - Front: Long-Spindle
• Axle Type - Rear: Semi-Float Beam
• Axle Capacity - Front (lbs): 4000
• Axle Capacity - Rear (lbs): 3700
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 46.99
• Shock Absorber Diameter - Rear (mm): 46.99
• Stabilizer Bar Diameter - Front (in): 1.08
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.78 x 0.55
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 0.413
• Tires
• Front Tire Order Code: - TBD -
• Rear Tire Order Code: - TBD -
• Front Tire Size: LT315/70R17
• Rear Tire Size: LT315/70R17
• Spare Tire Size: LT315/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 8.5
• Rear Wheel Size (in): 17 x 8.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.0
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Fully Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 145.2
• Length, Overall w/o rear bumper (in): 232.1
• Width, Max w/o mirrors (in): 86.3
• Height, Overall (in): 78.4
• Overhang, Front (in): 38.0
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 166.3
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 36.2
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.0
• Cargo Box Width @ Top, Rear (in): 60.3
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 55.4
• Ext'd Cab Cargo Volume (ft³): 62.3
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 65.9
• Front Hip Room (in): 60.5
• Second Head Room (in): 40.3
• Second Leg Room (in): 43.5
• Second Shoulder Room (in): 65.5
• Second Hip Room (in): 64.6
• Summary
• Vehicle Name: Ford F-150
• Body Style: Crew Cab Pickup
• Emissions
• EPA Greenhouse Gas Score: 1 (2012)
• Tons/yr of CO2 Emissions @ 15K mi/year: 14.0
